# Graphs II

## Purpose

On **graphs** and **sets** study:

* Permuation invariant
* Permutation equivariant

**Guiding principles** to synthesise and steer the **design** of deep learning architectures:

1. **Symmetries**
2. $$\boldsymbol{\mathfrak{G}}$$-**Invariance**
3. $$\boldsymbol{\mathfrak{G}}$$-**Equivariance**
4. **Locality**
5. **Scale Separation**

## The Building Blocks of Geometric Deep Learning

The following statements encapsulate and sum up the general geometric deep learning framework.

Let $$\Omega$$ and $$\Omega'$$ be domains, $$\boldsymbol{\mathfrak{G}}$$ a symmetry group over $$\Omega$$. Write $$\Omega' \subseteq \Omega$$ can be considered a compact version of $$\Omega$$

We define the following building blocks:

**Linear** $$\boldsymbol{\mathfrak{G}}$$-**equivariant layer** $$B: \mathcal{X}(\Omega,\mathcal{C}) \to \mathcal{X}(\Omega', \mathcal{C'})$$, satisfying linearity and resistance to group action in an equivariant way. No matter which symmetry group transformation $$\boldsymbol{\mathfrak{g}}$$ we take and featurization function $$x$$.

$$
B(\boldsymbol{\mathfrak{g}}.x) = \boldsymbol{\mathfrak{g}}.B(x) \forall \boldsymbol{\mathfrak{g}} \in \boldsymbol{\mathfrak{G}} : and : x \in \mathcal{X}(\Omega,\mathcal{C})
$$

**Nonlinearity** $$\sigma: \mathcal{C} \to \mathcal{C'}$$ Applied element-wise as

$$
\big ( \boldsymbol{\sigma}(x) \big)(u) = \sigma(x(u))
$$

In deep learning we typically inject nonlinearities through usage point-wise nonlinearities such as **sigmoid functions**, tangent or ReLU.

When we compose linear $$\boldsymbol{\mathfrak{g}}$$ equivariant layers and nonlinearities, we will end up with universal approximators over the domains.

**Local pooling** (coarsening)

$$
P: \mathcal{X}(\Omega, \mathcal{C}) \to \mathcal{X}(\Omega', \mathcal{C})
$$

such that $$\Omega' \subseteq \Omega$$.

Coarsening: Sometimes it might be useful to **coarse** the domain. This means going from an initial $$\Omega$$ to an $$\Omega'$$ which is slightly **smaller** and contains the previous domain within it.

$$\boldsymbol{\mathfrak{G}}$$-**invariant layer** (global pooling) $$A: \mathcal{X}(\Omega,\mathcal{C}) \to \mathcal{y}$$, satisfying

$$
A(\boldsymbol{\mathfrak{g}}.x) = A(x) \forall \boldsymbol{\mathfrak{g}} \in \boldsymbol{\mathfrak{G}} : and : x \in \mathcal{X}(\Omega, \mathcal{C})
$$

If we need **answers** on the level of the entire **domain**, we can use a global pooling layer which is **invariant** to the **symmetry** group transformation.

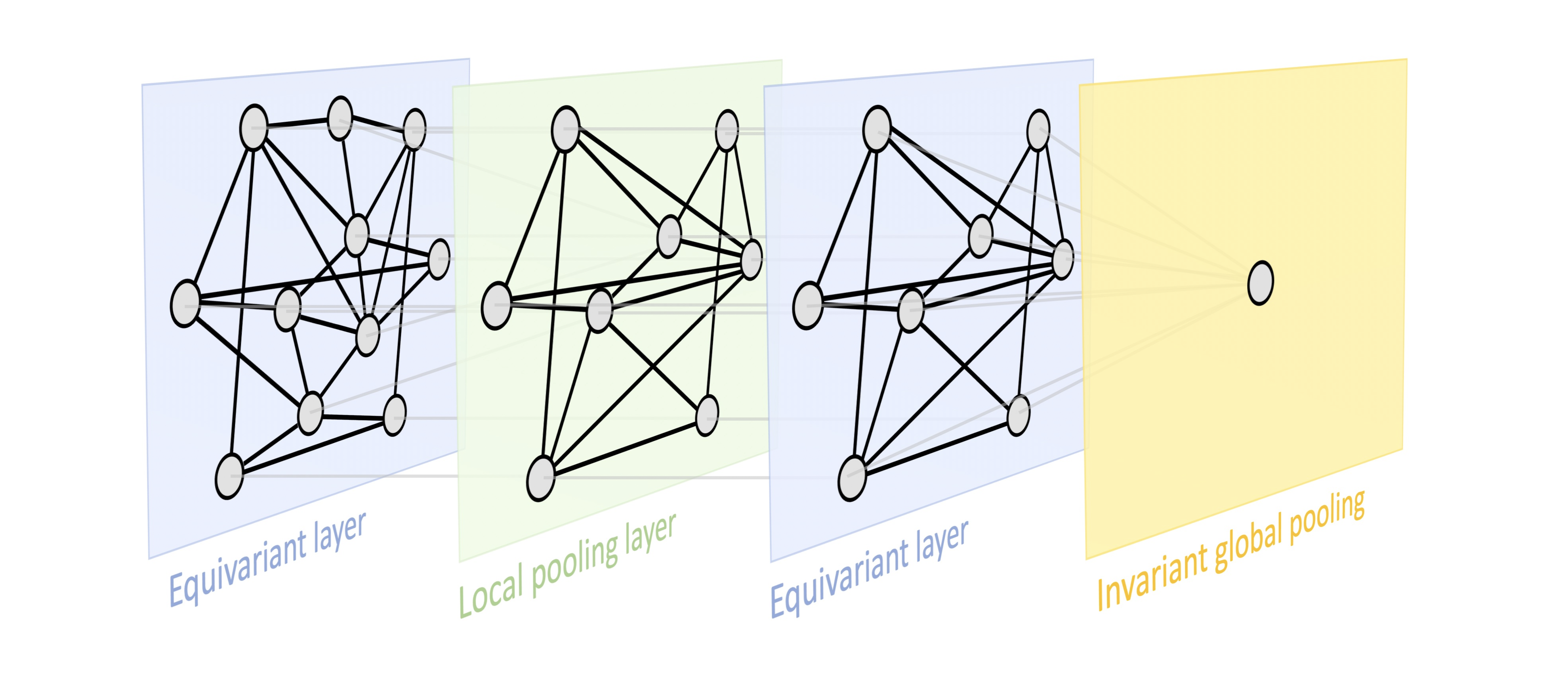

![Geometric Deep Learning blueprint](/files/qMc1p9yCeIjXvlUaAohf)

## GDL Framework in action: Graphs & Sets

### Motivation

We are going to start by demonstrating the blueprint on graphs because graphs and sets give us a very nice **discrete domain** with **minimal geometric assumptions** easy to analyse.

Also with some assumptions and transformations, any domain can be seen as a graph.

Question: **Why we might want to study data that lives on graphs?**

Answer: Graphs are common structures around us mostly all the time. They can be thought of as sort of the **main** modality of data we can encounter from **nature**.

*e.g.*:

* Molecular graphs
* Transportation networks
* Social networks

> “*The image of the world around us, which we carry in our head, is just a model. Nobody in his head imagines all the world, government or country. He has only selected **concepts**, and **relationships** between them, and uses those to represent the real system.*” **Jay Wright Forrester 1971**

### Learning On Sets: Graphs Without Connections

#### Why?

1. Graphs without connections, called **unordered sets**, have only **nodes** and no connections between them. This structure construct a simpler **domain**, so it's going to be much easier to analyse the geometric architectures that arise.
2. A significant part of the conclusions we achieve from sets will naturally carry over to graphs.
3. Even if we restrict ourselves completely to processing data on sets following this kind of structure, it would still a relevant area. *e.g*: **point clouds** data

**Setup**

Assume our graph **has no edges**

$$
\textcolor{Red}{\Omega} = \mathcal{V} \ E = \empty
$$

, the set of nodes.

We typically want to deal with **featurizing** this domain in some way. Thus we will assume that node $$i$$ has **features** $$x\_{i} \in \R^{k}$$, which is a real value **vector** with **k-dimensional** features This corresponds to our **feature space** $$\mathcal{C}$$.

Our feature space then is

$$
\textcolor{Red}{\mathcal{C}} = \R^{k}
$$

Once we have these features a typical way in which we can process data like this is by **stacking** the **node features** into a **node feature matrix** $$\boldsymbol{X}$$.

$$
\boldsymbol{X} = (\boldsymbol{x\_{1}},...,\boldsymbol{x\_{n}})^{\top}
$$

This feature matrix $$\boldsymbol{X}$$ of shape $$|\mathcal{V}| \times k$$, is interpreted such as **row** $$i$$ corresponds to the **features** of the $$ith$$ **node**.

**NOTE**: At the time we are building this feature matrix we have already **introduced** some notion of **order**. Thus we break apart our strong and initial **assumption**, when we assume the sets to be completely unordered. We would like a neural network that operates on $$\boldsymbol{X}$$ which **not depends** on the **order** of the **rows** of $$\boldsymbol{X}$$.

*e.g*:

Given an unordered set of **five nodes** and their features being $${ x\_1, x\_2, x\_3, x\_4, x\_5}$$, we are asked to learn some class of functions, neural networks, that will take the features of these individual nodes and produce an output on the level of the entire set. This function $$f$$ is desired to be **resistant** to the **order** in which we fed these features.

$$
f({ x\_1, x\_2, x\_3, x\_4, x\_5}) = y = f({x\_2, x\_5, x\_4, x\_3, x\_1})
$$

**Conclusion**: Even if we completely perturb the order in which we give the set elements to the function $$f$$ we expect the output $$y$$ to be unaffected. In the framework of **GDL** this corresponds to using the **n-element Permutation group** $$\Sigma\_{n}$$ as our **symmetry group** $$\boldsymbol{\mathfrak{G}}$$. The different group elements within this symmetry group will be the **permutations**

$$
\boldsymbol{\mathfrak{g}} \in \boldsymbol{\mathfrak{G}}
$$

The permutation will change the order in which we see the elements in this set and we want our neural networks to be resistant to this phenomenon.

#### Permutations and Permutations Matrices

**Idea**

It's useful to think about operators that **change** the node order.

*e.g*: $$(1,2,3,4) \rightarrow (2,4,1,3)$$

This example permutation maps the following actions over the set:

* $$y\_1 \leftarrow x\_2$$
* $$y\_2 \leftarrow x\_4$$
* $$y\_3 \leftarrow x\_1$$
* $$y\_4 \leftarrow x\_3$$

Concretised in the form of a unique expression as:

$$
\boldsymbol{\mathfrak{g}} = (\array{1 \mapsto 3 & 2 \mapsto 1 & 3 \mapsto 4 & 4 \mapsto})
$$

Formally, a permutation on a set $$S$$ is equivalently

1. a [bijection](https://ncatlab.org/nlab/show/bijection), **one-to-one correspondence**, from $$S$$ to itself,
2. a [pair](https://ncatlab.org/nlab/show/pair) of [linear orderings](https://ncatlab.org/nlab/show/linear+orderings) on $$S$$,

A **linear order** on a set $$S$$ is a binary **relation** $$<$$ with the following properties:

* [irreflexivity](https://ncatlab.org/nlab/show/irreflexive+relation): $$x \nless x$$,
* [asymmetry](https://ncatlab.org/nlab/show/asymmetric+relation): if $$x < y$$, then $$y \nless x$$,
* [transitivity](https://ncatlab.org/nlab/show/transitive+relation): if $$x < y < z$$, then $$x < z$$,
* [comparison](https://ncatlab.org/nlab/show/comparison): if $$x < z$$, then $$x < y$$ or $$y < z$$,
* [connectedness](https://ncatlab.org/nlab/show/connected+relation): if $$x \nless y$$ and $$y \nless x$$, then $$x = y$$.

1. an element in the [symmetric group](https://ncatlab.org/nlab/show/symmetric+group) of $$\boldsymbol{\mathfrak{G}}$$.

As automorphisms $$\sigma: S \to S$$ in set, the permutations of $$X$$ naturally form a **group** under **composition**, called the **symmetric group** (or **permutation group**) on $$S$$. This group may be denoted by $$S\_{X}, \Sigma\_{X}, X!$$, but we are going to denote it by $$\boldsymbol{\mathfrak{G}}$$. When $$S$$ is an finite set $$(n) = { 1,...,n}$$, then its symmetric group is a **finite group** of [cardinality](https://ncatlab.org/nlab/show/cardinality) $$n!$$. This is typically written as $$\Sigma\_n$$.

Within **linear algebra**, each permutation defines a $$|\mathcal{V}| \times |\mathcal{V}|$$ **matrix** ($$n \times n$$).

Such matrices, called **permutation matrices** (group action $$ho(\boldsymbol{\mathfrak{g}})$$), have **zeros** almost everywhere and have strictly just a **one** in every **row** and **column**. The positions of these ones correspond to the order of the nodes in the permutation.

*e.g*: For our initial example

$$
\boldsymbol{X}= \begin{bmatrix} \boldsymbol{x\_1} \ \boldsymbol{x\_2} \ \boldsymbol{x\_3} \ \boldsymbol{x\_4} \ \end{bmatrix}
$$

the permutation matrix looks as follows:

$$
\boldsymbol{P}\_{(2,4,1,3)} = \begin{bmatrix} 0 & 1 & 0 & 0 \ 0 & 0 & 0 & 1 \ 1 & 0 & 0 & 0 \ 0 & 0 & 1 & 0 \ \end{bmatrix}
$$

Its effect when **left-multiplied** is to permute rows of $$\boldsymbol{X}$$ as follows

$$
\boldsymbol{P}\boldsymbol{X} = \begin{bmatrix} \boldsymbol{x\_2} \ \boldsymbol{x\_4} \ \boldsymbol{x\_1} \ \boldsymbol{x\_3} \ \end{bmatrix}
$$

**Conclusion**: This examples illustrates that the permutation matrix is exactly the representation of the **group action** of the of the **permutation group**. Thus we can use this **matrix representation** to reason about permutations while being in the universe of **linear algebra**, which is going to make all of the subsequent analysis a lot easier.

#### Permutation invariance

We want functions $$f(\boldsymbol{X})$$ that operate over sets node features, that will **NOT** depend on the **order** of the nodes. Equivalently if we apply a permutation matrix to $$\boldsymbol{X}$$, it **shouldn't change** the **result**. Thus $$f(\boldsymbol{X})$$ is permutation invariant if and only, for **all** permutation matrices $$\boldsymbol{P}$$:

$$
f(\boldsymbol{PX}) = f(\boldsymbol{X})
$$

This property is desirable for set neural networks when we **assume** that our domain is **unordered** sets. We then say that the set neural network $$f(\boldsymbol{X})$$ is permutation invariant if and only if independently of the chosen $$\boldsymbol{X}$$ matrix chosen, the result stills **unchanged**.

We can compare this with our requirement in the geometric deep learning framework for $$\boldsymbol{\mathfrak{G}}$$-**invariant layer**, and specifically in this case, our $$f$$ corresponds to the $$\boldsymbol{\mathfrak{G}}$$-**invariant layer** $$A$$, and the group action $$\boldsymbol{\mathfrak{g}}$$ corresponds to applying a permutation matrix. Therefore we have a **one-to-one** correspondence with the framework.

**Deep Sets model**

It's general procedure to perform representation learning on sets in a way that's permutation invariant. It applies a **point-wise** neural network $$\psi$$ on **every** single **node** in **isolation**. Then in order to guarantee permutation invariance, we **sum** up the features of **all** the nodes in the set to finally **transform** that with neural network, denoted by $$\phi$$.

$$
f(\boldsymbol{X}) = \textcolor{Orange}{\phi \Bigg (} \Sigma\_{i \in \mathcal{V}} \textcolor{Green}{\psi(} x\_i \textcolor{Green}{)} \textcolor{Orange}{\Bigg )}
$$

In this expression $$\textcolor{Orange}{\phi}$$ and $$\textcolor{Green}{\psi}$$ are **learnable** functions.

The **sum** aggregation is responsible to achieve the permutation invariance because independently of how we permute the rows of a matrix, its sum will be always be the same. Even though we can use other types of **aggregators** such as **maximization** or **average**, which indeed keep achieving permutation invariance. Thus we can **generalize** the previous expression to be

$$
f(\boldsymbol{X}) = \textcolor{Orange}{\phi \Bigg (} \bigoplus\_{i \in \mathcal{V}} \textcolor{Green}{\psi(} x\_i \textcolor{Green}{)} \textcolor{Orange}{\Bigg )}
$$

Since this moment, whenever we see the generic aggregator operator, denoted by $$\bigoplus$$, we must conceive **anything** which is **permutation invariant** over its arguments.

#### Permutation equivariance

Permutation invariant models are good for **set-level** outputs. This means that it's a desirable property to have when we want outputs on the level of the entire set.

Question: **What if we would like answers to node level?**

Answer: In order to preserve and identify **node outputs** we can't take use of the permutation invariant summation. Here **summation** would potentially **destroy** node-level outputs or at least make them really hard to recover.

Now rather than restrict the generated output to be resistant to permutation, we want to let the permutation produce a **new** and different **result** but while making this phenomena **predictable**. Therefore we want a function that **doesn't change** the node **order** when applied. This concludes that it doesn't matter **when** we apply the **permutation** to the set.

$$
\boldsymbol{F}(\boldsymbol{PX}) = \boldsymbol{PF}(\boldsymbol{X})
$$

***NOTE***: Trying to be consistent with the linear algebra universe and its notation, the function is capitalized and in **bold**, because it returns a **matrix** as **output**.

Compare with **GDL** framework: **Linear** $$\boldsymbol{\mathfrak{G}}$$-**equivariant layer** $$B: \mathcal{X}(\Omega,\mathcal{C}) \to \mathcal{X}(\Omega', \mathcal{C'})$$, satisfying linearity and resistance to group action in an equivariant way. No matter which symmetry group transformation $$\boldsymbol{\mathfrak{g}}$$ we take and featurization function $$x$$.

#### Locality

Strict resistance to symmetries is not the only property we want. It's desirable that our neural networks's **predictions** not immensely **collapse** under the effect of **non-perfect** symmetry transformation.

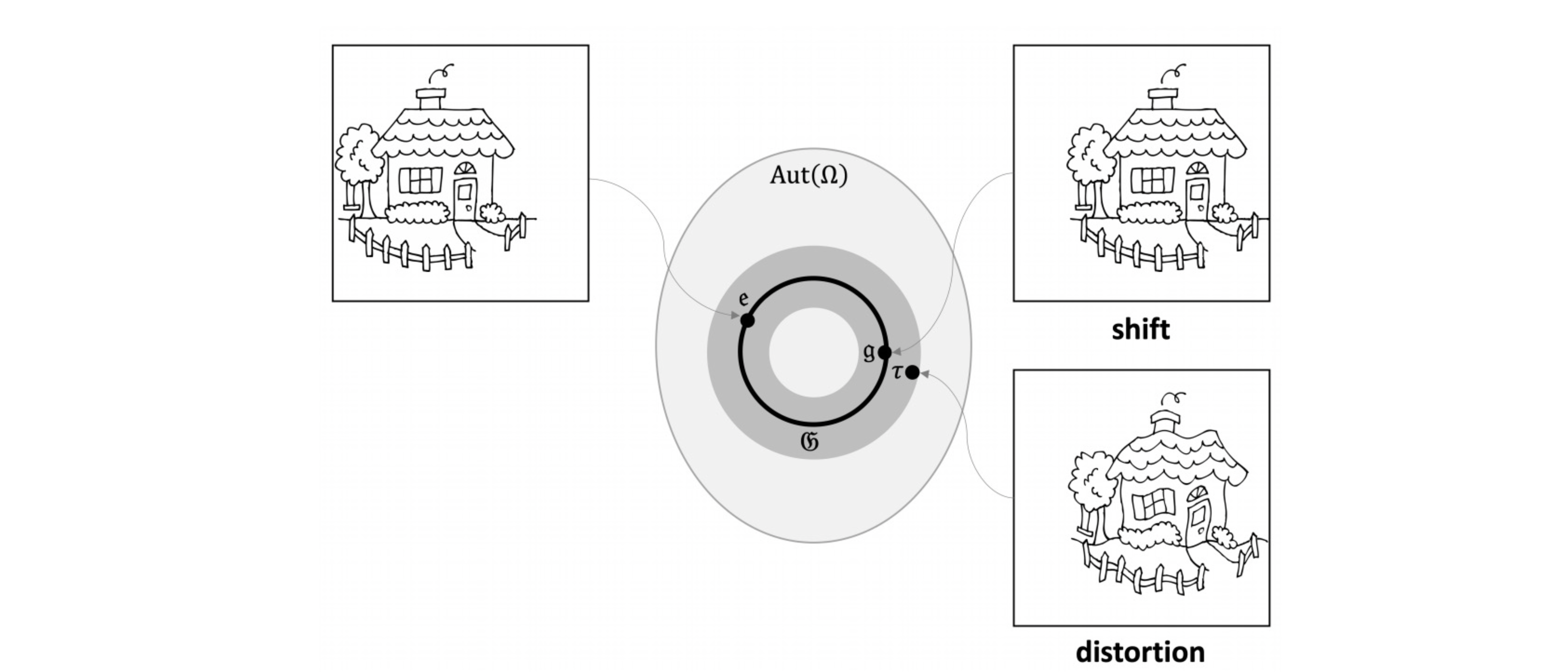

Data is not usually transformed using a symmetry element but rather **noise** it's acquired and added in the transformations, generating **distortions**. Then we would want the signal to be **stable** under slight **deformations** of the domain.

![](/files/mTP05g051F7VhxnBIVvo)

If we want to achieve this level of resistance under distortions, it's crucial to **compose local** operations to model **large scales** ones, as local operations **won't globally** propagate **errors**. This implies that we would want graph neural networks (GNN) to have **layers** which behave **locally** with respect to the structure of the domain.

Question: **What does it mean for an equivariant layer on sets to be local?**

Answer: One way we can enforce **locality** in equivariant set functions is through a **shared** function $$\psi$$ applied to every **node** in **isolation**:

$$
\boldsymbol{h}*{i} = \psi(\boldsymbol{x}*{i})
$$

Stacking $$\boldsymbol{h}*{i}$$ in the same way we stacked the original $$\boldsymbol{x}*{i}$$, this yields an new matrix, denoted by $$\boldsymbol{H}$$, which is considered as the output of our function $$\boldsymbol{F}$$.

$$
\boldsymbol{H} = \boldsymbol{F}(\boldsymbol{X})
$$

Compare with **GDL** framework:

(stacking) $$\textcolor{Cyan}{equivariant}$$ functions, potentially with an $$\textcolor{Orange}{invariant}$$ tail yields any useful set neural nets.

$$
f(\boldsymbol{X}) = \textcolor{Orange}{\phi \Bigg (} \bigoplus\_{i \in \mathcal{V}} \textcolor{Green}{\psi(} x\_i \textcolor{Green}{)} \textcolor{Orange}{\Bigg )}
$$

This expression is quite close to what our framework would have construct. There is a point-wise function which corresponds precisely to a local equivariant function, denoted by $$\textcolor{Green}{\psi}$$, over **nodes**, and then if needed to generate predictions at **set-level**, we can add a global pooling layer at the very end. In the expression this is denoted by the generic aggregator operator $$\textcolor{Orange}{\phi}$$

**Conclusion**: This is probably the best and most general form of a neural network that operates on sets, without assuming or inferring additional structure or relations (**edges**).

### Learning On Graphs

Now we can generalize the structure of the set of nodes, assuming they have **edges** between them constructing relations. Thus we consider graphs $$\delta = (V,E)$$ where $$E \subseteq V \times V$$ is a subset of the [cartesian product](https://ncatlab.org/nlab/show/cartesian+product).

Further information about graphs definition and properties can be found at chapter:

{% content-ref url="/pages/lqz9OM8omcPSZ5o8OUHo" %}
[Graphs I](/geometric-deep-learning/graphs-i.md)
{% endcontent-ref %}

Our representation of **edges** will be consistent with the realms of **linear algebra**. So we can represent these edges in an **adjacency matrix**, which is a binary matrix, denoted by $$\boldsymbol{A}$$. By using this representation edges have now become part of the domain. Any further additions like **edges features** or **weights** to them are completely possible.

Nevertheless, we are going to limit ourselves to work without any additional information attached to edges, although all the derived math related to just edges as a binary matrix, will carry out to more complex structures. So we will just conceive every edge is just a binary indicator of whether or not two nodes are connected.

Our **main** desire with sets holds for graphs, since we also want our graph neural networks to be **resistant** to **permutations** over the **nodes** and **edges** which construct the graph.

\### Permutation invariance & equivariance

We assume there's some **connectivity** structure between our nodes. Therefore when we permute the nodes, we expect the **edges** to accordingly act and be permuted **identically**. We assume that after applying the permutation we will obtain **2** [isomorphic](https://ncatlab.org/nlab/show/isomorphism) **graphs**.

When the nodes are permuted, we need to appropriately permute both **rows** and **columns** of adjacency matrix $$\boldsymbol{A}$$. Thus if we are using a **permutation matrix**, denoted by $$\boldsymbol{P}$$, to permute our nodes, that means we are reordering our adjacency matrix $$\boldsymbol{A}$$ as $$\boldsymbol{PAP^{\top}}$$. The first $$\boldsymbol{P}$$ is reponsible for permuting the **rows** and the permutation matrix **transpose** deals a permutation of the **columns**.

* **Invariance**

$$
f(\boldsymbol{PX},\boldsymbol{PAP^{\top}}) = f(\boldsymbol{X})
$$

* **Equivariance**

$$
\boldsymbol{F(\boldsymbol{PX},\boldsymbol{PAP^{\top}})} = P\boldsymbol{F(\boldsymbol{X,A})}
$$

**Conclusion**: This two properties carry over very naturally from sets.

#### Locality: Neighbourhoods

Locality doesn't carry over as naturally as invariance and equivariance do from sets. We now **assume** there might exist **relations** between nodes, which in fact means we musn't transform every node just in **isolation**. Thus graphs give us a broader context by the so-called node's neighbourhood.

**Node's neighbourhood**: For a node $$i$$, we can derive its **1-hop** neighbourhood, denoted by $$\mathcal{N}\_i$$, as the set of all **nodes** $$j$$ which are **connected** to $$i$$ exclusively with one **edge**.

$$
\mathcal{N}\_i = { j : (i,j) \in E : \or : (j,i) \in E }
$$

Accordingly, we can extract neighbourhood features, $$\boldsymbol{X}\_{\mathcal{N}\_i}$$ , like so:

$$
\mathcal{N}\_i = { \boldsymbol{x}\_j : j \in \mathcal{N}\_i }
$$

Now we can do something more **generic** than just having a point-wise **local function**, we can have a local function, denoted by $$\phi$$, operates over the **node** itself and its **neighbourhood**.

$$
\phi(\boldsymbol{x}\_i,\mathcal{N}\_i )
$$

Doing so, we can construct permutation **equivariant** functions $$\boldsymbol{F(X,A)}$$, by appropriately applying the local function $$\phi$$, over all **neighbourhoods**.

$$
\boldsymbol{F(X,A)} = \begin{bmatrix} \phi(\boldsymbol{x}\_1,\mathcal{N}\_1 ) \ .. \ ..\ \phi(\boldsymbol{x}\_n,\mathcal{N}\_n ) \ \end{bmatrix}
$$

To ensure equivariance, it's sufficiente if $$\phi$$ **doesn't** depend on the **order** of the nodes $$\mathcal{N}\_i$$

### Graph Neural Networks

![Graph Neural Network example](/files/38wIEutzLHfH3porzdro)

$$
\boldsymbol{X}*{\mathcal{N}*{i}} = { { \boldsymbol{x}\_a, \boldsymbol{x}\_b, \boldsymbol{x}\_c, \boldsymbol{x}\_d, \boldsymbol{x}\_e } }
$$

We have built an **equivariant** function on graphs by using another **local permutation invariant** function, **learnable** and denoted by $$\phi$$, acting at **node** level. The graph neural network computes **new features representation** for a node given its neighbourhood of features, denoted by $$\boldsymbol{X}*{\mathcal{N}*{I}}$$ , which for the sake of extra context can **contain the node itself**. Apply the local function $$\phi$$ corresponds to the expression:

$$
\boldsymbol{h\_i} = \phi(\boldsymbol{x}*i, \boldsymbol{X}*{\mathcal{N}\_{i}})
$$

We then **parallelize** the application of this local function in **isolation** to every single node conforming the **graph**.

#### General procedure

Given as inputs to a graph neural network, a graph with feature inputs, denoted by $$\boldsymbol{X}$$, such that a particular node and its feature representation, $$\boldsymbol{x}\_i$$, and some adjacency matrix $$\boldsymbol{A}$$, the application of this function will update our features (inputs) to their **latents** representation.

$$
\boldsymbol{GNN(X,A)} \to \boldsymbol{(H,A)}
$$

This update of a particular node depends on its neighbourhood features and, if desired, by itself. The adjacency matrix structure is preserved through this update, although there is room for more sophisticated procedures which could explicitly change the relations living in the graph.

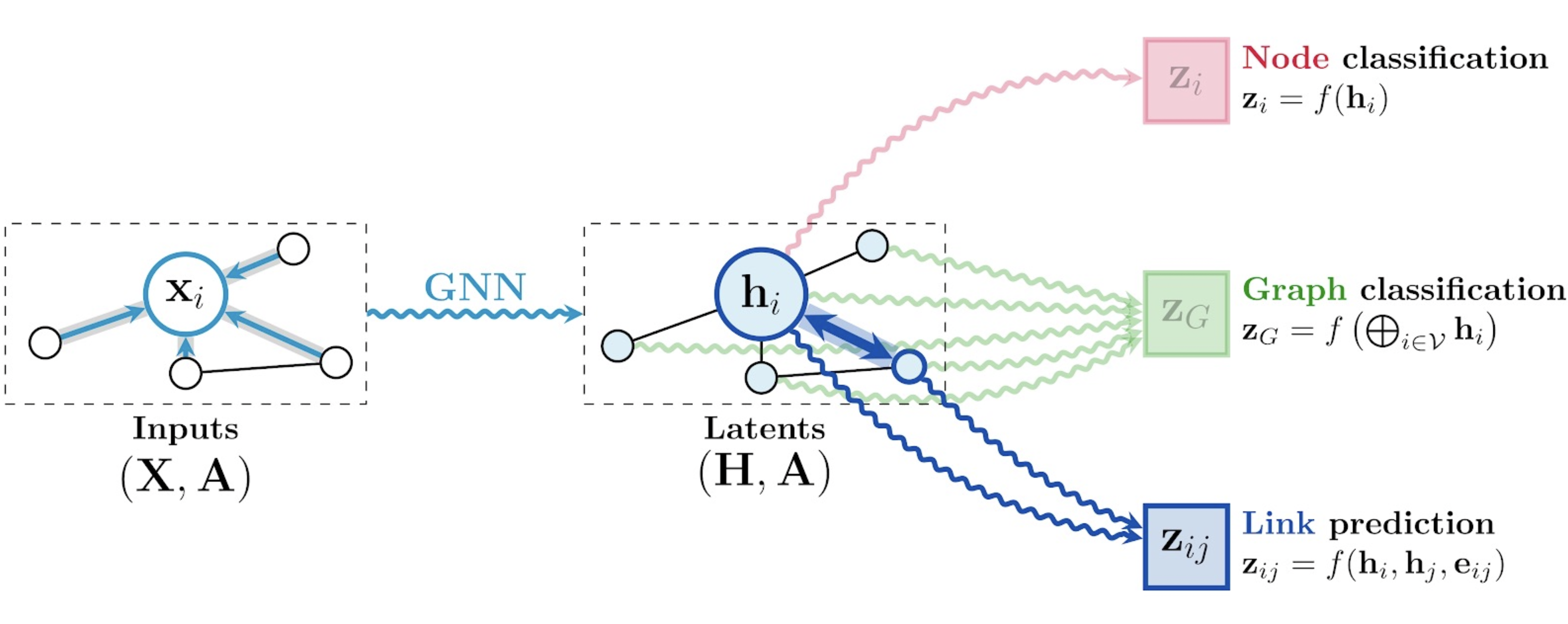

From this general procedure emerges several possible tasks:

* $$\textcolor{Red}{Node}$$ **classification**: We can effectively learn a classifier acting at node level to predict likelihood node features output.

$$
\boldsymbol{z}\_i = f(\boldsymbol{h}\_i)
$$

* $$\textcolor{Green}{Graph}$$ **classification**: Classifications at the level of the entire domain forces us to somehow transform our nodes features in a **permutation invariant** form. Generally this is achieved using a generic **aggregator operator,** $$\bigoplus$$, which could be the **summation** or average.

$$
\boldsymbol{z}*G = f(\bigoplus*{i \in \mathcal{V}}\boldsymbol{h}\_i)
$$

* $$\textcolor{Blue}{Link}$$ **prediction** (edge classifier): Because now edges are an important part of our domain, we can also do predictions over edges. For example, edge classification and edge regression are factible. We can also estimate the likelihood of an edge existing between one or several nodes. We would need a function that takes under consideration both neighborhoods, the one comming from the node $$i$$ and the one from $$j$$. In addition, we can use any possible and existent information present in their edges, denoted by $$\boldsymbol{e}\_{ij}$$.

$$
\boldsymbol{z}\_{ij} = f(\boldsymbol{h}\_i, \boldsymbol{h}*j, \boldsymbol{e}*{ij})
$$

![Tmp image](/files/WpAiHjTRj0Ik9zS1huz2)

**Local permutation invariant function**

The local permutation invariant function, denoted by $$\phi(\boldsymbol{x}*i, \boldsymbol{X}*{\mathcal{N}\_{i}})$$, shared applied to every node, guarantees that we can in fact construct permutation equivariant functions on graphs, $$\boldsymbol{F(X,A)}$$. This $$\phi$$ can be called, depending on the literature as:

1. **Message passing**
2. **Diffusion**
3. **Propagation**

Whereas $$\boldsymbol{F}$$ corresponds to a **layer** in the GNN architecture. Finding and building good candidates to become this local function $$\phi$$ ,is one of the most active areas of research nowadays in the field of GNNs. Nevertheless, all of these proposed local functions can be **derived** and reasoned under the geometric deep learning framework using **three spatial flavours**.

1. **Convolutional**
2. **Attentional**
3. **Message-passing**

As we go from **1**, convolutional, to **2**, message-passing, the number of possible representable functions **grows**. We can represent convolutional layers as a special case of attentional layers, and represent attentional layers using message passing layers. The more right we go, the more complex the problem we can fit, but at the expense of **poor scalability** and increasing the risk of **overfitting** the data. There is room for trade offs attending to our context.

**Convolutional**

We have not clearly defined a decision method to correctly anticipate how to aggregate all the neighbors in the neighborhood. The **neighborhood size** for a given node could hugely vary concerning the average of the other nodes of the graph. We cannot be too pragmatic about **size-dependent kernels (filters)**, those filters whose behavior and configuration strictly depend on their input size.

Question: **What do convolutional GNNs accomplish**?

**Answer:** They quantify how meaningful an individual neighbor is relative to a specific node. To express how a particular neighbor influences a node, we are going to use **weights**, denoted by c\_{ij}. Consequently, we are going to do a **point-wise** transformation to all of our node features, and then every node will compute a **weighted combination** of all of its neighbors based on the c\_{ij} coefficients.

$$
\boldsymbol{h}\_i = \phi \Bigg ( \boldsymbol{x}*i, \bigoplus*{j \in \mathcal{N}*i}\textcolor{Orange}{c*{ij}} \psi(\boldsymbol{x\_j}) \Bigg )
$$

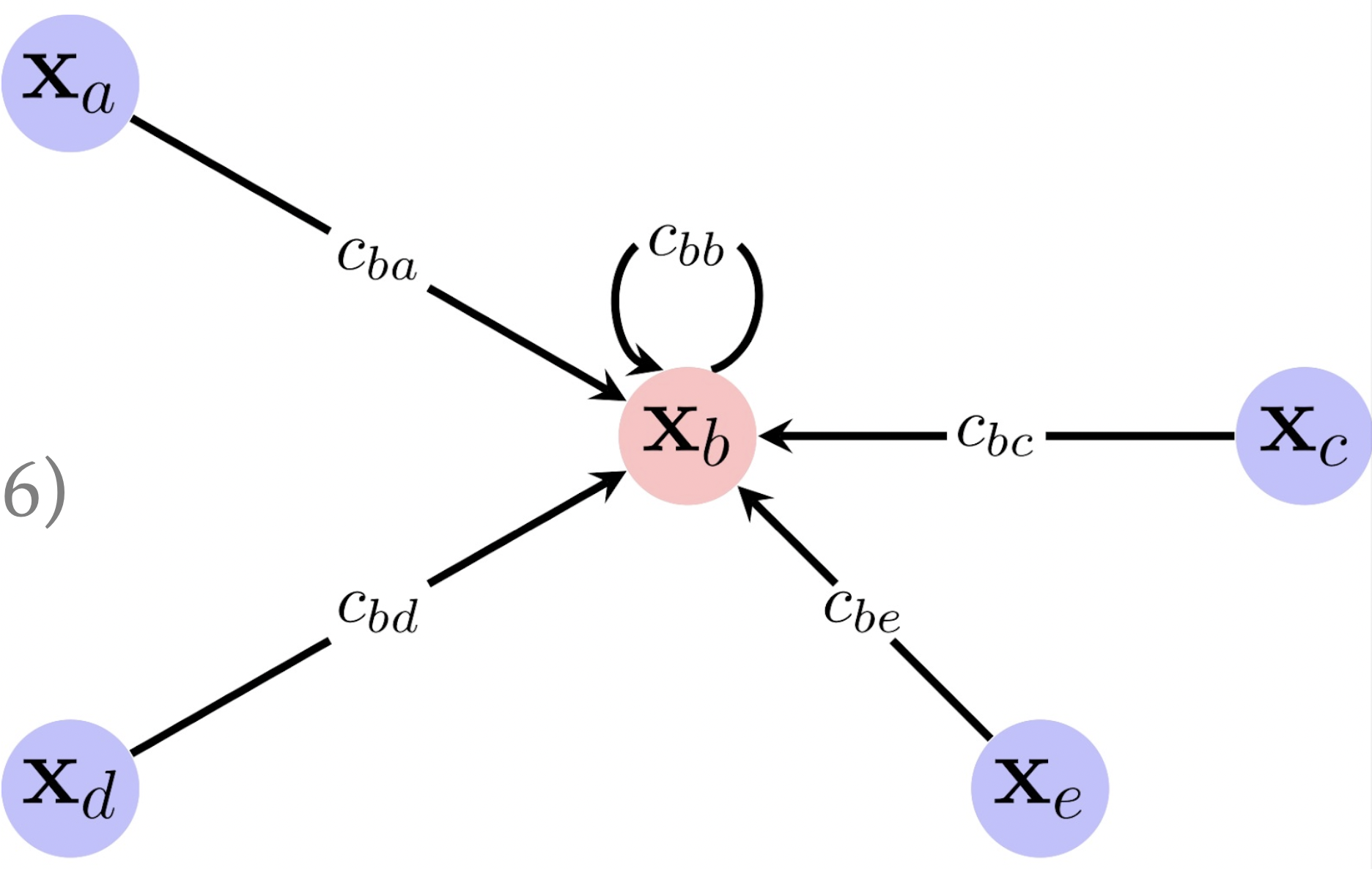

![tmp convolutional GNN](/files/r0tcQkkIP3xlKP4eL1Yb)

*e.g.*

We sum all our neighbors, where each one is multiplied by the corresponding weight.

The essential part of this whole procedure is that these weights were already predefined before applying the graph neural network. Thie **adjacency matrix** dictates these weights accordingly to the graph topology.

Widespread instances of these kinds of layers include but are not exclusive:

* ChebyNet (Defferrard *et al.,* NeurIPS'16)
* **G**raph **C**onvolutional **N**etwork (Kipf & Welling, ICLR'17): This is currently the top-cited graph neural network paper.
* **S**implified **G**raph **C**onvolutional (Wu *et al.*, ICML'19): Has shown how simple these layers can become and can still recover mostly any real-world graph.

Because convolutional GNNs **specify the weights** before anything **and** are usually some function of the **graph topology**, these models are helpful when our graphs are **homophilous**.

**Homophilous graphs**: Graphs whose edges encode label similarities. The majority of our neighbors are expected to share the same label with high statistical significance. Thus averaging is a robust **regularizer** since the feature representation of a particular node will highly rely on the features of all its neighbors.

As the coefficients are predefined, this equation can be efficiently computed using **sparse matrix** multiplication. This explains why this type of GNNs are the most industrial ones nowadays, as they can handle large graphs with applicational value.

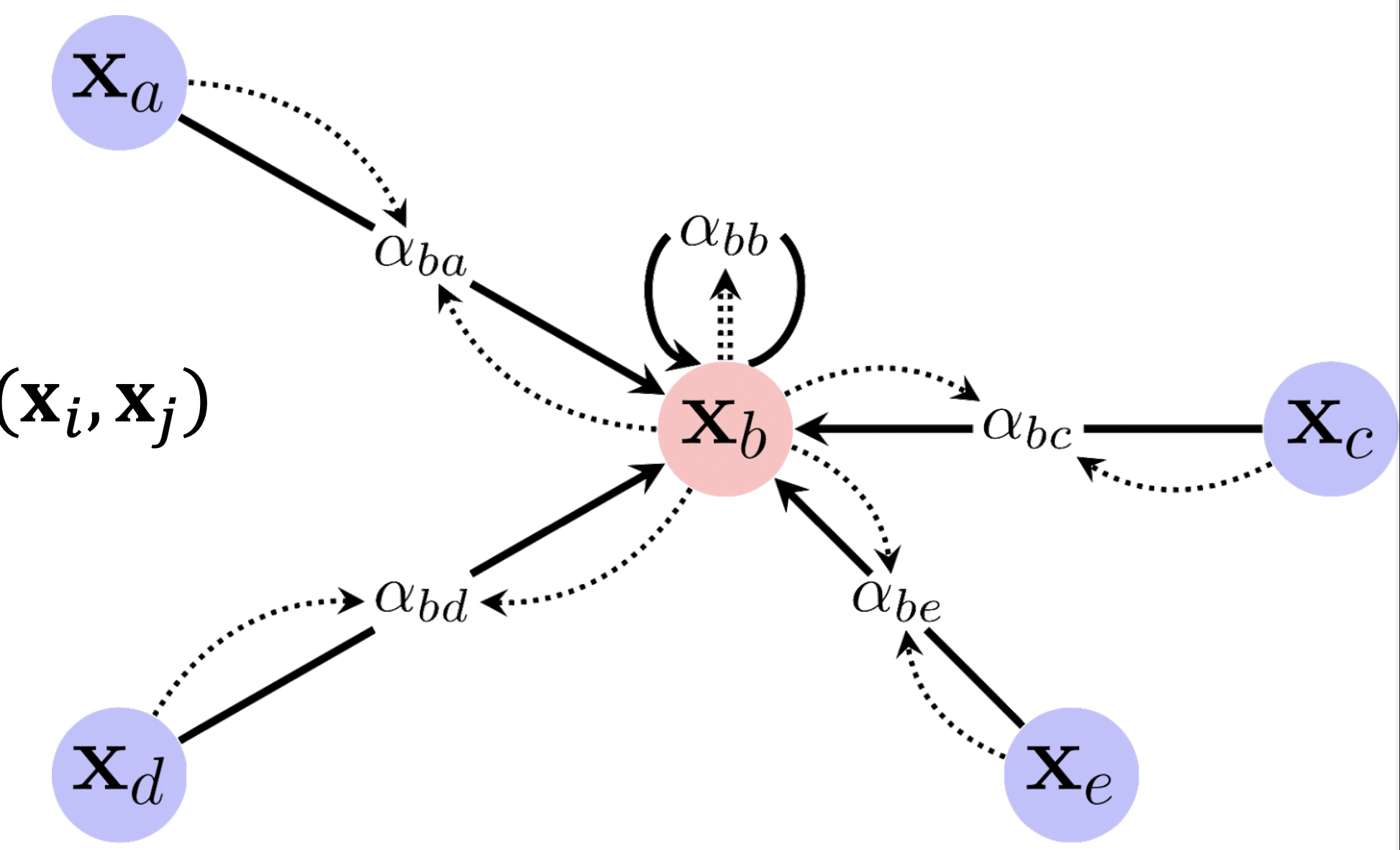

**Attentional**

Given a particular neighborhood, we do **not** need to **assume** that edges necessarily encode **similarity** as we have done in convolutional GNNs. This precondition of defining weights between nodes in the same neighborhood cannot be **generalized**. It will not be suitable for learning graphs that count with more **complex** relations.

*e.g.* social network interactions

Doing a retweet of somebody else opinion does not strictly means that we might share the same thoughts. We can even wholly disagree.

More suitable graph neural network architectures exist to encapsulate more complex graph relations among nodes. They quantify node relations as a function done in a **feature-dependent** matter rather than a pure graph topology computation.

$$
\boldsymbol{h}\_i = \phi \Bigg ( \boldsymbol{x}*i, \bigoplus*{j \in \mathcal{N}\_i} \textcolor{Green}{a(}\boldsymbol{x}\_i, \boldsymbol{x}\_j \textcolor{Green}{)} \psi(\boldsymbol{x\_j}) \Bigg )
$$

![tmp convolutional GNN](/files/t7mXxUwnRg24gOMrjJcE)

One very natural form of achieving this is by using an **attention mechanism**. So in convolutional graph neural networks, we previously had fixed coefficient interactions, whereas now these coefficients are computed based on the **sender** and **receiver** node features.

We have **replaced** the $$c\_{ij}$$ **constant** coefficient with an **attention function** that takes features of $$x\_i$$ and $$x\_j$$ and produces a **scalar**, denoted by $$\alpha\_{ij}$$.

$$
\alpha\_{ij} = \textcolor{Green}{a(}\boldsymbol{x}\_i, \boldsymbol{x}\_j \textcolor{Green}{)}
$$

Some trendy models tried to conceive this attention procedure idea within the graph domain:

* MoNet (Monti *et al.,* CVPR’17)
* **G**raph **AT**tention network (Veličković *et al*., ICLR’18)
* GATv2 (Brody *et al.*, 2021): It is an improved and enhanced successor of **GAT**, since it solves the **static attention** problem in graph attention networks.

We are **not** obligated to **assume** that our graph is **homophilous**. We can now learn a radical set of complex and new interactions between nodes. The computational cost keeps feasible, with just **one scalar** per **edge**. Thus we are able to increase our learnability bounds without sacrificing scalability. Once these new scalars have been computed, we are dealing again with the earlier introduced sparse matrix multiplication employed in the convolutional world.

Attentional architectures are the de facto standard today for acquiring and learning complex interactions. This architecture shines in those graphs, which we expect there will be a complex behavior emergence along their edges. More about this field, including the acclaimed **transformer** architecture, in the upcoming chapter.

**Message-passing**

They are the most generic form of graph neural network layer we can tangibly achieve. We **no** longer **assume** that our edges encode a particular **weighted combination** that needs to be computed. Edges give us a **recipe** to pass **data**, and the **message function** determines what data actually is moving to which node. We can compute arbitrary vectors, the so-called **message vectors**, to be **sent** across **edges**.

$$
\boldsymbol{h}\_i = \phi \Bigg ( \boldsymbol{x}*i, \bigoplus*{j \in \mathcal{N}\_i} \textcolor{Red}{\psi(} \boldsymbol{x}\_i, \boldsymbol{x}\_j \textcolor{Red}{)} \Bigg )
$$

![tmp convolutional GNN](/files/PsXhjRosLaKbuBOU7nE3)

There is a vast difference between the procedures employed in the convolutional and attentional mechanisms. We had to compute **something** in our **neighbor** and then **aggregate** that in a weighted combination. The neighbor decides the aggregation influence, but the **receiver** also alters the final aggregation.

The $$\psi$$ function acts now on both the **sender** and the **receiver** node. They cooperate to compute a message vector, denoted by

$$
\boldsymbol{m}\_{ij} = \textcolor{Red}{\psi(} \boldsymbol{x}\_i, \boldsymbol{x}\_j \textcolor{Red}{)}
$$

which then the **receiver** node aggregates in some **permutation invariant** form.

There exist plenty of popular layers that suggest message passing computation:

* Interaction Nets (Battaglia *et al.,* NeurIPS’16)
* **M**essage **P**assing **N**eural **N**etworks (Gilmer *et al*., ICML’17)
* Deepmind **GraphNets** (Battaglia *et al.*, 2018)

Nevertheless, these immense expressivity capabilities do not come without expenses. These graph neural networks become **harder** to interpret, scale, **and learn.** Although, this expressivity is obliged and unavoidable in tasks linked to computational chemistry, reasoning, and simulations. These tasks necessitate edges as a recipe for passing messages. There are many parameters to be learned involved within this mechanism.

**Conclusion:** The set of functions representable by convolutional GNNs, is less than or equal to the ones representable by attentional, and this latest one is capable of representing less than or equal to message passing. They are in increasing order of generality.

**covolutional** $$\subseteq$$ **attentional** $$\subseteq$$ **message-passing**


---

# Agent Instructions
This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com.

## Querying This Documentation
If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question.

Perform an HTTP GET request on the current page URL with the `ask` query parameter:

```
GET https://a-j.gitbook.io/geometric-deep-learning/graphs-ii.md?ask=<question>
```

The question should be specific, self-contained, and written in natural language.
The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.

Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
