Introduction

GitHub - antferdom/wasm_playground: Deep dive into the WASM internal structure and behaviour.GitHub

Github with the wasm source code

This first part introduces the most basic WASM module in textual format (.wat) and several insights in the generated bytecode file (.wasm). Then a more elaborated wasm program with a simple computation is shown. This computation will be the square of a given natural number. And to conclude, two different options are explored for being capable of executing the compiled wasm programs. One of these is execution over the Node runtime and the other inside the browser via Javascript interoperability.

Most basic webassembly module

File: empty_module.wat

;; The most basic module possible to be created in webassembly textual format.
(module)

;; This code needs to be compile to bytecode. Not currently understandable by any runtime.
;; Text (.wat) -> Bytecode (.wasm). This is provided by wabt toolkit.
;; wabt includes compilers to convert between WebAssembly’s text representation and wasm (wat2wasm),
;; and vice versa, plus more besides.
;; Location (github): https://github.com/webassembly/wabt
;; Location (homebrew): https://formulae.brew.sh/formula/wabt#default

Compile the textual representation of a webassembly program to bytecode via wat2wasm compiler.

e.g:

Compiler flags:

• -o output_filename : Specifies the target generated file.

$ wat2wasm empty_module.wat -o empty_module.wasm

Inspect the contents of the wasm file to see what it looks like. UNIX command -> xxd

e.g: empty_module.wasm

$ xxd empty_module.wasm
00000000: 0061 736d 0100 0000        00000000: 0061 736d 0100 0000                      .asm....

For fine grained bytecode representation of the generated output file, specify the flag for verbose compilation. Opcodes underneath. will be shown.

Compiler flags:

• -v

e.g: empty_module.wasm

$ wat2wasm empty_module.wat -v -o empty_module.wasm
0000000: 0061 736d                                 ; WASM_BINARY_MAGIC
0000004: 0100 0000                                 ; WASM_BINARY_VERSION

NOTE: The previously opcodes shown as examples are universally present in every wasm file as main headers.

A webassembly module with a simple computation

Name: math.wat Description: Take a number a compute its square. Then call it from the browser and exectue it.

(module
    ;; The string after the $ symbol specifies the name of the function.
    ;; Given a number compute its square.
    ;; Input
    ;;  param i32
    ;;
    ;; Output
    ;;  result i32
    (func $square (param i32) (result i32)
        local.get 0 ;; pull the input value and push it to the stack
        local.get 0 ;; square function needs the same number twice
        i32.mul ;; mul operation expects two numbers from the stack
        ;; Evaluation of arithmetic expressions using a stack
        ;;
        ;; (2 * 2)
        ;; would be written as
        ;;
        ;; 2 2 *
        ;; and evaluated like this
        ;;
        ;; Contents of the stack                    Program being evaluated
        ;;
        ;;  [ ]                             |               2 2 *
        ;;  [2]                             |               2 *
        ;;  [2, 2]                          |               *
        ;;  [4]                             |
        ;;
        ;; The return value will be the final content of the stack after the execution.
    )
    ;; export the previous function so javascript can run it.
    (export "square" (func $square))
)

Detailed bytecode opcodes (math.wasm):

0000000: 0061 736d                                 ; WASM_BINARY_MAGIC
0000004: 0100 0000                                 ; WASM_BINARY_VERSION
; section "Type" (1)
0000008: 01                                        ; section code
0000009: 00                                        ; section size (guess)
000000a: 01                                        ; num types
; func type 0
000000b: 60                                        ; func
000000c: 01                                        ; num params
000000d: 7f                                        ; i32
000000e: 01                                        ; num results
000000f: 7f                                        ; i32
0000009: 06                                        ; FIXUP section size
; section "Function" (3)
0000010: 03                                        ; section code
0000011: 00                                        ; section size (guess)
0000012: 01                                        ; num functions
0000013: 00                                        ; function 0 signature index
0000011: 02                                        ; FIXUP section size
; section "Export" (7)
0000014: 07                                        ; section code
0000015: 00                                        ; section size (guess)
0000016: 01                                        ; num exports
0000017: 06                                        ; string length
0000018: 7371 7561 7265                           square  ; export name
000001e: 00                                        ; export kind
000001f: 00                                        ; export func index
0000015: 0a                                        ; FIXUP section size
; section "Code" (10)
0000020: 0a                                        ; section code
0000021: 00                                        ; section size (guess)
0000022: 01                                        ; num functions
; function body 0
0000023: 00                                        ; func body size (guess)
0000024: 00                                        ; local decl count
0000025: 20                                        ; local.get
0000026: 00                                        ; local index
0000027: 20                                        ; local.get
0000028: 00                                        ; local index
0000029: 6c                                        ; i32.mul
000002a: 0b                                        ; end
0000023: 07                                        ; FIXUP func body size
0000021: 09                                        ; FIXUP section size
antonio@Antonios-imac playground %

Execution procedures

Node runtime

1. npm init

2. Package.json

...
"type": "module"
...

1. Execute the file index.js e.g: square(10)

$ node index.js
100

Inside the browser

1. Create an Express.js server.

2. Create and instatiate the appropiated server process in a file named server.js.

3. Create a public folder and move math.wasm to its location.

$ mv math.wasm ./public

4. Execution of the server program.

$ node server.js
Server listening on port: 3000

5. Create a standar HTML document and call the appropiate WASM module there.

5.1 Inside the browser go to: localhost:3000/test.html

5.2 Open the developer tools.

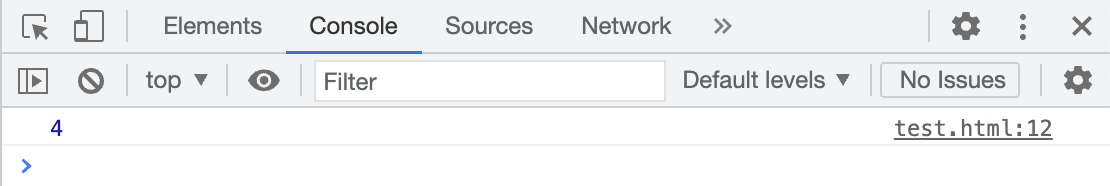

5.3 The output will be in the console

square(2)
